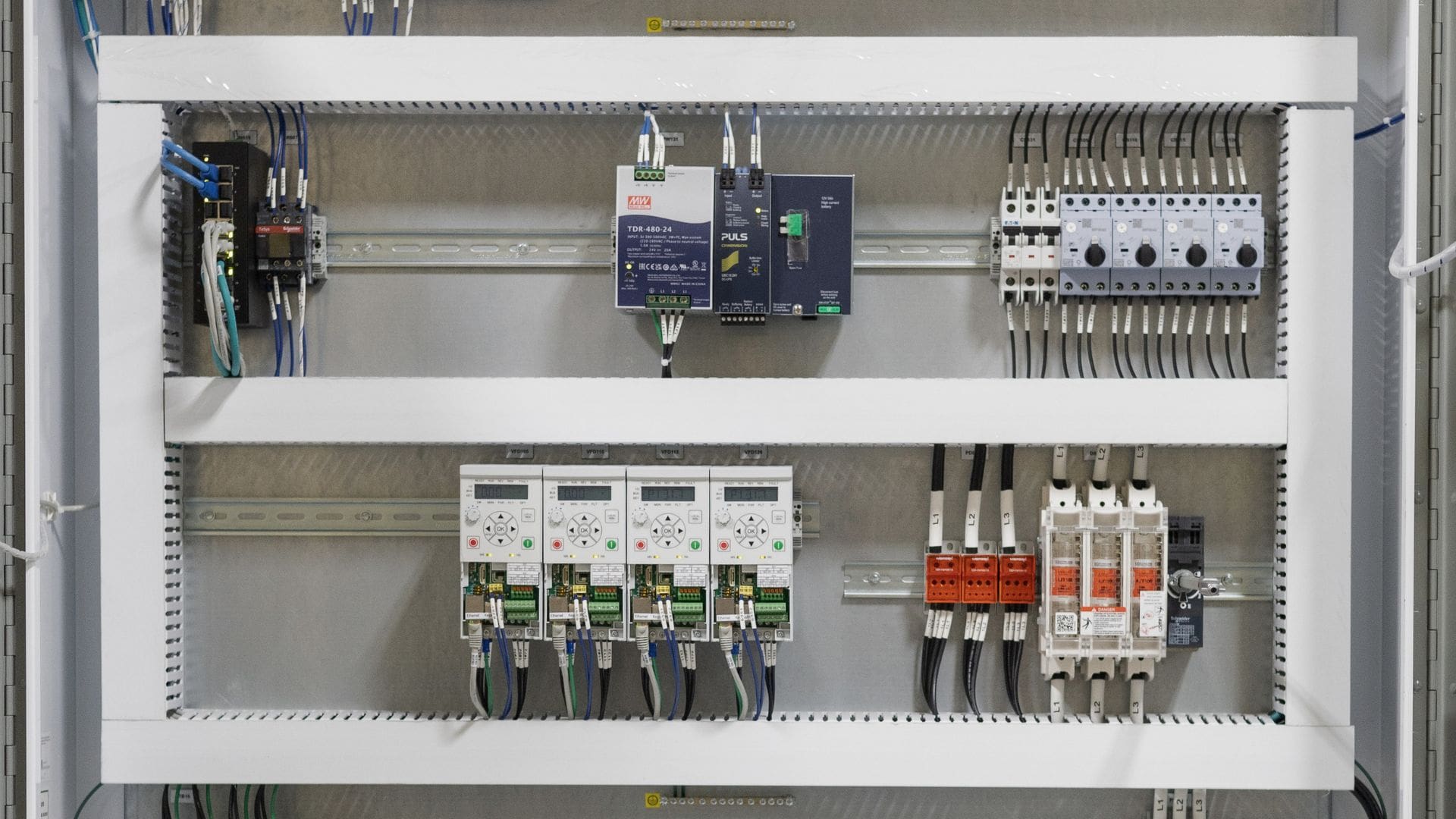

Variable Frequency Drive Installation, Configuration and Commissioning
Our VFD setups are engineered and commissioned by controls experts who document every setting.
Eliminate nuisance drive faults from day one
Optimize energy use and extend motor life
Commission faster with documented parameter sheets
Tired of VFDs That Trip, Drift or Fight Your Process?
- Are your drives faulting on overcurrent, overvoltage or DC bus events?
- Is sloppy VFD configuration causing nuisance trips and unplanned downtime?
- Do you lack the parameter sheets and as-built notes to troubleshoot quickly?
- Has a previous VFD commissioning been “close enough” but never actually dialed in?
When VFD installation skips the careful configuration and commissioning steps, you pay for it. Let Adgo Controls help.
Adgo Configures and Commissions VFDs That Stay Running
Adgo Controls has been integrating drives, PLCs and motor control systems for industrial OEMs and end users for more than two decades. Our UL-certified panel shop and field engineers handle every step of variable frequency drive installation, from drive selection and panel wiring through parameter setup, autotune and final commissioning under real process load. We document what we build, label what we wire and verify what we set so your maintenance team is not guessing six months from now.
- 20+ years integrating experience
- Single source for complete turnkey solutions
- 30,000-square-foot, UL- certified facility
Bad VFD Commissioning Costs You Long After the Install Truck Leaves
Improperly configured drives shorten motor life, waste energy and trip at the worst possible time. Worse, when no one documents the parameters, your maintenance team is locked out of fast recovery and forced to call the original installer for every reset. Adgo delivers commissioned drives with parameter sheets, validated I/O and verified motor performance.
What Our Customers Say
“Adgo does it all – design, fabrication, programming… They’re a one-stop shop. They’ve learned our industry, and bring new ideas and thoughts to it. They’re a good partner.”
Brian B., director of engineering, manufacturing distributor
“For more than 20 years, Adgo has been our trusted controls integration partner. Their technical depth, responsiveness, and consistency make them an invaluable extension of our engineering team.”
Mike G., president, OEM customer
“Adgo is very easy to work with. They go above and beyond to assist with anything I need.”
Deblene H., project manager, security solutions customer
The Wrong Partner Costs More Than the Project
Using off-the-shelf industrial control systems or a vendor who disappears after install isn’t just another frustration; more often than not, it’s a long-term liability. Downtime, rework and scope gaps quickly compound into a long-term liability and add cost.
Adgo clients get a team that’s responsible from that first call all the way through maintenance and service. It’s not a promise. It’s our track record.
The “Simplify Your Process” Plan
1
Provide us with plans, specs or an overview of your requirements.
2
Get custom-engineered solutions backed by expert support.
3
Move forward with a fully commissioned system tailored to your needs.
Frequently Asked Questions
About VFD Configuration and Commissioning
A complete VFD installation includes drive sizing, panel mounting, line- and load-side protection, motor cable management, control wiring to the PLC or HMI, parameter configuration, autotune, and on-site commissioning under load. Each installation finishes with a parameter sheet and as-built drawings for the maintenance team.
VFD installation scope by Adgo Controls includes:
- Drive selection and sizing: Engineers match drive capacity to the motor’s full-load amps, duty cycle and ambient temperature so the drive operates within its thermal envelope.
- Power and signal wiring: Installation teams pull line-side feeders, load-side motor leads with shielded cable, and 24V control wiring to the PLC, HMI or remote operator station.
- Parameter configuration: Technicians enter motor nameplate data, control source, ramp times and protection thresholds.
- Autotune and commissioning: If the application requires sensorless vector control, the drive runs an autotune routine to identify the motor’s stator resistance and inductance before final commissioning.
- Documentation: Every project closes with a parameter sheet, as-built control drawings and a commissioning report.
Keep learning by visiting our VFD Configuration and Commissioning page or reading the answer to another FAQ: What is the difference between VFD configuration and VFD commissioning?
VFD configuration is the parameter-setting phase of a variable frequency drive installation, where motor data, control source, ramp times and protection limits are entered into the drive. VFD commissioning is the verification phase that follows, where the configured drive is tested against the actual motor and process under load.
What each phase covers:
- Configuration sets the drive’s logic. Motor full-load amps, voltage, frequency, base speed and poles get entered as nameplate parameters. Acceleration ramps, deceleration ramps, current limits and overload thresholds follow.
- Commissioning proves the logic works. Field engineers run rotation tests, validate digital and analog I/O, check communication to the PLC over EtherNet/IP or Modbus TCP and exercise the drive across its full speed range.
- Autotune lives in commissioning. If the application uses sensorless vector control, then commissioning includes an autotune routine to measure stator resistance and inductance before production runs.
- Safety functions verified during commissioning: Safe torque off (STO), emergency stop response and fault recovery behavior all get tested before sign-off.
A standard single-drive variable frequency drive installation typically takes four to eight hours on-site, including mounting, wiring, configuration and commissioning. Multi-drive panel projects or installations involving network integration with a PLC can extend across two to five days, depending on motor count and process complexity.
Factors that drive VFD installation timing:
- Motor count: A single 5HP pump drive can be installed and commissioned in half a day. A 12-drive conveyor system can take a full week.
- Panel work: If the drive ships pre-mounted in a UL 508A panel, then field time drops by 30 to 50 percent compared to field installations.
- Network integration: Adding the drive to an EtherNet/IP or Modbus TCP network requires PLC programming, tag mapping and HMI graphics work that runs in parallel with field installation.
- Autotune time: Sensorless vector and closed-loop applications add 15 to 45 minutes per drive for motor identification routines.
- Commissioning under load: Drives should run against real process load before sign-off, which depends on plant production windows.
A successful variable frequency drive installation requires motor nameplate data, line voltage and frequency, full-load amp draw, control source preference, application type (pump, fan, conveyor or constant torque), network protocol, and any safety function requirements. Missing nameplate data delays VFD configuration more than any other factor.
Required inputs for accurate VFD configuration:
- Motor nameplate: Voltage, frequency, full-load amps, base speed, pole count, service factor and insulation class drive nearly every parameter the drive needs.
- Application profile: Variable torque loads (pumps, fans) use V/Hz control. Constant torque loads (conveyors, mixers, extruders) often require sensorless vector or closed-loop control.
- Line conditions: Service voltage, available short-circuit current and any known harmonic concerns determine input filtering, line reactors and breaker sizing.
- Control source: Drives accept commands from a local keypad, hardwired 24V signals, 4–20mA analog or industrial networks including EtherNet/IP, Modbus TCP and PROFINET.
- Safety scope: If the application requires safe torque off (STO), then the drive must include the STO option card and dedicated safety wiring before commissioning.
Adgo Controls performs variable-frequency drive installation, configuration and commissioning for Allen-Bradley PowerFlex, ABB ACS, Yaskawa, Siemens Sinamics, Danfoss, Schneider Electric, Automation Direct, and Mitsubishi drives. Engineers maintain current expertise across firmware revisions, parameter sets and networking protocols on every supported platform.
Yes. Electrical work places the drive and brings power to the terminals, but variable frequency drive installation is not complete until parameters are configured against motor nameplate data, I/O is validated and the drive is tested under load. Skipping VFD commissioning is the leading cause of nuisance trips.
Why electrical installation alone leaves drives misconfigured:
- Default parameters do not match the motor. Drives ship with generic factory settings that ignore actual nameplate amps, base speed and overload curves.
- Untuned drives waste energy. A variable torque load running on default V/Hz curves can consume 10 to 30 percent more energy than a properly configured drive.
- Safety functions stay disabled. Safe torque off, emergency stop response and fault recovery behavior require deliberate configuration and verification.
- Network communication fails silently. EtherNet/IP or Modbus TCP nodes that are not parameter-mapped to the PLC will pass power but fail data exchange under load.
- Production risk: If the drive controls a critical asset such as a pump, fan or conveyor in continuous production, then skipping commissioning trades short-term install savings for long-term downtime costs.
Yes. Proper variable frequency drive installation and configuration can reduce motor energy consumption by 20 to 50 percent on variable torque loads such as pumps and fans, compared to running the same motor across the line. Savings depend on duty cycle, load profile and the control mode selected during VFD configuration.
How VFD configuration delivers energy savings:
- Affinity laws apply to centrifugal loads. Reducing pump or fan speed by 20 percent cuts power draw by roughly 50 percent because power scales with the cube of speed.
- Energy-optimized control modes exist on most platforms. PowerFlex, ABB ACS and Sinamics drives include flux-reduction algorithms for lightly loaded motors.
- Sleep and wake functions eliminate idle losses. Configured drives stop the motor during low-demand periods and restart automatically when process demand returns.
- Soft start eliminates inrush penalties. Across-the-line starts draw 6 to 8 times motor full-load amps. Drive-controlled ramps draw nameplate amps or less.
- Payback math: If the load profile shows significant low-speed operation, then a properly configured drive returns its purchase price in energy savings within 12 to 36 months on most pump and fan applications.
Post-installation VFD trips most often trace to four causes: incorrect motor nameplate parameters, mismatched ramp times, undersized line reactors and skipped autotune. A complete variable frequency drive installation prevents each issue through nameplate verification, application-specific ramp tuning, harmonic mitigation review and autotune execution during VFD commissioning.
Yes. A complete variable frequency drive installation includes drive-to-PLC integration over EtherNet/IP, Modbus TCP or PROFINET, plus HMI graphics, alarms and trend setup. VFD commissioning verifies data exchange between the drive and the broader control system before the drive is released to production.
Network and HMI integration tasks during VFD commissioning:
- PLC tag mapping: Engineers map drive control words, status words, speed reference and feedback to PLC tags for use in process logic.
- Communication protocol setup: EtherNet/IP, Modbus TCP, PROFINET and CANopen each have different timing, addressing and electronic data sheet (EDS) requirements that must be configured on both ends.
- HMI graphics and alarms: Drive status, fault codes, speed feedback and motor current populate the operator interface so production staff can run and troubleshoot without a laptop.
- Trend logging: Drive parameters can be logged to the PLC or historian for energy reporting, predictive maintenance and root-cause analysis.
- Safety integration: If the drive is part of a safety-integrated system, then commissioning includes verification of safety function exchange between the drive’s STO inputs and the safety PLC.
Yes. Every variable frequency drive installation closes with two documentation deliverables: a complete parameter sheet and as-built control drawings. Documentation gives the maintenance team a clear path to troubleshoot, restore or replicate the VFD configuration without contacting the original installer.
VFD commissioning documentation package contents:
- Parameter sheet: A full export of every modified drive parameter, including motor nameplate values, ramps, control source, network address and protection settings, in PDF and the drive vendor’s native backup format.
- As-built control drawings: Updated electrical schematics showing actual wiring, terminal numbers, network addresses and field changes made during installation.
- Spare parts and recovery guide: Drive part numbers, recommended spares and instructions to restore parameters to a replacement drive.
- Recovery time: If a drive fails and a replacement is installed, then the parameter file loads from the documented backup in five to 15 minutes instead of re-commissioning from scratch.
