HMI System Integrator for Control Panels

The HMI is an enclosed assembly that houses a human-machine interface terminal and the components an operator uses to run a machine. The HMI displays real-time data from the PLC and field devices, letting an operator start, stop, configure and monitor the process from one screen.

HMI terminal hardware inside the panel includes:

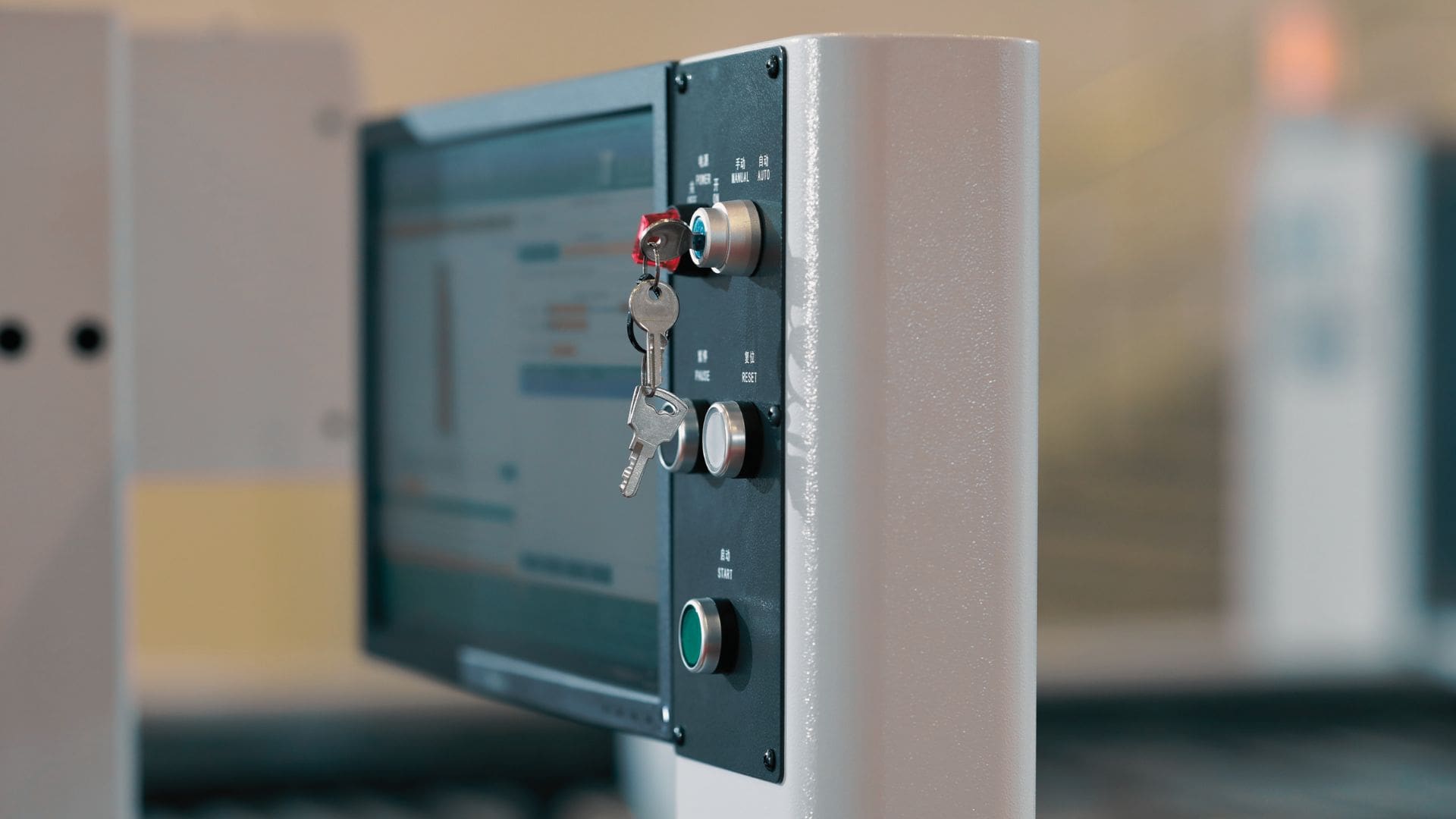

• A touchscreen or keypad HMI terminal, the operator’s window into the control system, mounted in the enclosure door for line-of-sight operation.
• A programmable logic controller (PLC), the controller the HMI reads from and writes to.
• Push-buttons, pilot lights and selector switches, the hard-wired controls UL 508A keeps as safety-critical functions.
• Power supply and terminal blocks, which condition and distribute control voltage to the HMI and field wiring.

If the screen fails mid-shift, then hard-wired pushbuttons let operators stop the machine. An HMI brings the operator interface, controller connection and hard-wired controls into one enclosed assembly for plant engineers to monitor. See how it fits the wider control panel design and build on our Components and Partners page.

An HMI holds the operator interface, while the PLC is the controller that runs the machine’s logic. The HMI displays data and accepts operator input; the PLC executes the programmed instructions that drive the equipment from which data is measured.

The HMI reads from and writes to the PLC over the control network. PLC integration determines how the HMI behaves according to a series of steps:

1. HMI tags map directly to PLC memory addresses, so a button press on the screen sets a bit the PLC acts on.
2. The PLC runs the deterministic control logic, scanning inputs and setting outputs in milliseconds, while the HMI handles visualization.
3. Communication uses an industrial protocol such as EtherNet/IP or Modbus TCP, the messaging standards that carry data in a live feed.
4. If the HMI loses communication with the PLC, then the controller keeps running the process while the screen shows a comms-fault alarm.
5. Separation of roles means an HMI swap does not require rewriting PLC logic, which protects your validated control program.

The HMI shows and accepts the data, while the PLC runs the logic that actually controls the machine. Explore the controller side of the system on our PLC Panels page.

An HMI is the machine-level interface an operator uses on the line, while SCADA supervises devices across an entire facility. As a plant-wide monitoring system, it adds centralized reporting, a data historian search tool and facility-wide alarm management. A SCADA system can integrate many HMIs beneath it.

Supervisory control extends beyond a single HMI:

• HMI scope covers one machine or a single line, giving the operator local visualization and control at the point of work.
• SCADA scope covers the whole facility, pulling data from many HMIs, PLCs and remote sites into one supervisory layer.
• Data historian, a time-stamped database tool inside SCADA, stores months of process data for trend analysis and compliance reporting.
• Alarm management at the SCADA top-down level aggregates faults across sites, so a control room sees live plant-wide events in an emergency.

If a line-level HMI goes offline, then SCADA still logs and alarms on the underlying PLC data it collects directly. An HMI controls one machine or line, while SCADA supervises many machines and lines across the plant. It also pulls data from the PLCs beneath. See the backbone that carries it on our Network Panels page.

An HMI system integrator designs, builds and programs the HMI as one singular, ready-to-go and tested assembly. The scope includes a screen layout plus operator navigation, mapping HMI tags to PLC addresses, configuring alarms and trends and factory-testing the panel before shipment. The assembly arrives ready to run. HMI programming and integration covers many display tasks:

• Tag mapping links every on-screen object to the correct PLC memory address, so displayed values match real machine state.
• Alarm configuration defines trigger conditions, priorities and operator messages, turning raw faults into clear, actionable instructions.
• Factory acceptance test (FAT) validates the HMI against control logic before its shipment date, catching errors in the shop rather than later on your floor.
• If an operator triggers an emergency stop, then the HMI logs the event and displays recovery steps tied to the PLC state.

An HMI system integrator like Adgo specifies, builds and programs the panel as one tested assembly. Some competitors do not consider HMI to be a core competency; they prefer to bolt a screen on at the end of a project. See the full design process and scope of what our team integrates on our Components and Partners page.

As an integrator, Adgo programs HMIs across all the major industrial platforms. Manufacturer partnerships support the expertise behind the engineering as a Rockwell Silver Systems and a Schneider Certified integrator. These relationships give the design team direct access to the manufacturers’ HMI hardware, firmware and configuration software for new builds and migrations.

Supported HMI platforms span the major leading controls ecosystems:

• Allen-Bradley PanelView, including PanelView Plus 7 and PanelView 5000 graphic terminals, programmed in FactoryTalk View and Studio 5000 View Designer
• Schneider Harmony, the operator-terminal line formerly branded Magelis, configured in EcoStruxure Operator Terminal Expert
• Standalone or controller-linked builds, so the HMI matches whether the panel runs a dedicated PLC or an integrated HMI controller
• Maple Systems HMIs
• Ignition Edge Panel
• Automation Direct HMIs

If your line already standardizes on one ecosystem, then the team programs to that platform itself. The goal is to keep spares, training and software consistent. Adgo programs most major HMI platforms through its Rockwell, Ignition,  and Schneider partnerships, matching the build to the ecosystem your plant already runs. See the controllers these platforms pair with on our PLC Panels page.

Yes, in two areas. Adgo builds HMIs as a UL 508A- and UL 698A-certified panel. UL 508A is the standard for constructing general-use industrial control panels, and the label applies to a given panel when the specification calls for a third-party listing mark. UL 508A panel certification governs how the panel is built:

• General-use panels rated 1000 volts or less in ordinary locations are governed by UL508A. Also, the HMI, PLC, breakers and terminal blocks carry their own recognized ratings before assembly.
• Short-circuit current rating (SCCR) is calculated and marked on the panel, which UL 508A and NEC Article 409 both require pre-install.
• Operator-interface devices such as pushbuttons, pilot lights and selector switches are wired to construction rules alongside the HMI.

If an inspector requires a third-party mark, then a panel built to UL 508A carries the listing label that satisfies the AHJ (authority having jurisdiction). We build every HMI control panel to UL 508A as a certified panel shop, with a listing applied when the spec calls for one. See the same build standards on our Electrical Control Panels page.

An HMI can be built into any NEMA 12, NEMA 4 or NEMA 4X enclosures, depending on the operating environment. NEMA 12 suits indoor dust and drip areas, while NEMA 4 and 4X add hose-down and corrosion resistance. The panel’s overall type rating accounts for the HMI cutout and any device mounted through the door.

NEMA enclosure ratings match the panel to its environment:

• NEMA 12, an indoor rating, protects the HMI against falling dust, dirt and dripping non-corrosive liquids on a plant floor.
• NEMA 4, a watertight rating, withstands hose-directed water and washdown, common on food and beverage lines.
• NEMA 4X adds corrosion resistance, using stainless steel or polycarbonate for chemical, marine or sanitary areas.

HMI bezel gasketing maintains the enclosure rating at the screen cutout, the most common point where a rating is lost. If the panel mounts in a washdown zone, then a NEMA 4X enclosure with a sealed HMI bezel keeps the rating intact during cleaning.

An HMI can be built into NEMA 12, 4 or 4X enclosures, depending on dust, washdown and corrosion exposure risk in the planned environment. An HMI control panel is rated NEMA 12, 4 or 4X to match dust, washdown and corrosion exposure on the line. See where those ratings matter most on our Pump Control Panels page.

A new HMI from Adgo maps to your existing PLCs, addressing scheme and reporting structure to keep plant procedure consistent. Configured to communicate over your existing industrial protocol, the HMI upgrades without forcing a costly rebuild of the wider control system or SCADA layer. Industrial protocol integration connects the HMI to what you already run.

This is how we integrate with existing systems:

• EtherNet/IP, the Ethernet-based protocol common on Allen-Bradley systems, links the HMI to Rockwell PLCs without added gateways.
• Modbus TCP, an open industrial protocol, ties the HMI to mixed-vendor PLCs and field devices over standard Ethernet.
• OPC UA, a platform-neutral data standard, lets the HMI exchange tags with SCADA and higher-level systems securely.

Tag and alarm mapping reuses your existing addressing, so historical SCADA trends and reports stay continuous after the swap. If your plant runs a legacy serial network, then a protocol gateway bridges the new HMI to older PLCs without rewiring the field.

A new HMI maps to your existing PLCs, addressing and protocol, so a screen upgrade does not force a control-system rebuild. See the controllers your HMI connects to on our PLC Panels page.

Every Adgo HMI ships with a complete documentation package: mechanical drawings, electrical schematics, a bill of materials and factory test records. The as-built set gives your maintenance team the references needed to troubleshoot, stock spares and modify the panel after installation. Panel documentation package supports the panel for its full service life:

1. Electrical schematics show every circuit, terminal and wire number, so a technician traces a fault without reverse-engineering the build.
2. Mechanical drawings give enclosure layout and dimensions, the reference for mounting, spares fit and future modifications.
3. Bill of materials (BOM) lists each component with manufacturer part numbers, so replacements are sourced exactly, not guessed.
4. Factory test records document the panel’s pre-shipment checks, evidence the assembly was verified before it reached your floor.
5. HMI application backup, the editable project file, lets you or Adgo modify screens later instead of rebuilding the program.

Every Adgo HMI ships with schematics, drawings, a bill of materials and factory test records, so the panel stays serviceable for life.

Yes. Adgo upgrades and replaces legacy HMIs when the enclosure has the space, power and communication path to support new hardware. We work with what is on the ground when at all possible. Engineers evaluate the existing interface, migrate the application to a supported platform and re-integrate the HMI with the PLCs and SCADA already running the process.

HMI migration and retrofit modernizes the panel mid-life:

• Application migration ports screens, tags and alarms from the obsolete or out-of-sync terminal to a supported platform, preserving operator workflow.
• Drop-in sizing matches the new HMI to the existing cutout where possible, avoiding sheet-metal rework on the enclosure door.
• Communication conversion bridges older serial links to Ethernet protocols such as EtherNet/IP or Modbus TCP.

Furthermore, obsolescence review flags discontinued components, the parts most likely to cause unplanned downtime when they fail. Adgo migrates a legacy HMI to a supported platform and re-integrates it with your existing PLCs when the enclosure can support new hardware. See the platforms those migrations target on our Components and Partners page.
