Variable Frequency Drive Panels

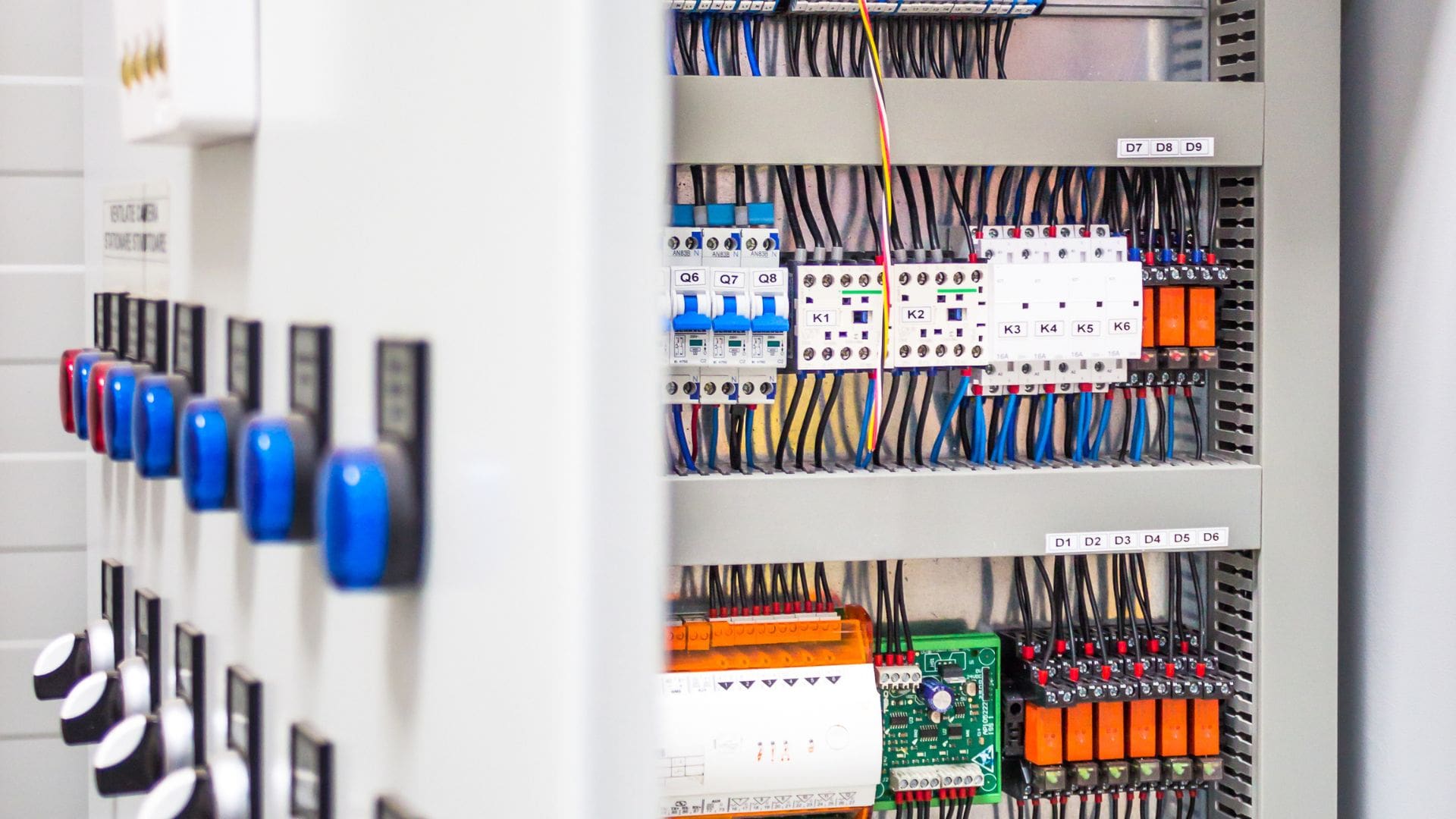

A VFD panel is an electrical enclosure that houses the panels that control motor speed. The panel adjusts the frequency and voltage supplied to a motor, delivering precise speed control, smooth starts and energy savings on variable-torque loads like pumps and fans.

There are several VFD panel components:

• A VFD panel varies motor speed by changing output frequency, cutting energy use on pumps and fans that rarely need full speed.
• Line reactors and filters reduce harmonic distortion, protecting upstream transformers and nearby equipment from electrical noise.
• UL 508A enclosure rating confirms the panel meets National Electrical Code (NEC) build standards, so it passes inspection without rework.

If a drive fails, then onboard protection trips the affected circuit and signals the PLC (programmable logic controller), isolating the problem instead of stopping the whole line. Sizing the drive, enclosure and cooling to the application is what keeps a panel running cool and fault-free for years. Adgo matches each drive to the right hardware through our Components and Partners program.

Every Adgo Controls variable frequency drive panel is built to UL 508A’s standards by a UL 508A-certified panel shop. The certification confirms the panel meets National Electrical Code (NEC) requirements for industrial control assemblies, so the build passes inspection without last-minute field rework.

UL 508A panel compliance involves the reporting of calculations, ratings and evaluations:

• UL 508A certification covers the entire enclosure, including component spacing, wire sizing and short-circuit current rating, not just the drive.
• SCCR (short-circuit current rating) is calculated and labeled on every panel, so your authority having jurisdiction (AHJ) can verify it against the installation’s available fault current.
• In-house fabrication keeps the UL build under one roof, so design changes do not break the listing.
• If your jurisdiction requires a field evaluation, then a UL 508A panel documents the components and ratings an inspector needs.

A documented UL 508A build also speeds up approval on government and municipal projects, where inspectors expect labeled ratings up front. The same standard carries across our Engineered Control Panels.

Every variable frequency drive panel can introduce harmonic distortion, so Adgo Controls designs mitigation into the build using line reactors, dV/dt filters or harmonic filters sized to the drive and the load. Mitigation protects transformers, motors and nearby electronics from overheating and premature failure.

Harmonic mitigation for VFDs involves a small ecosystem:

• Line reactors add impedance ahead of the drive, smoothing current draw and lowering total harmonic distortion (THD) on the supply.
• dV/dt filters limit voltage spikes on long motor leads, protecting motor windings and extending insulation life.
• Passive or active harmonic filters target specific frequencies when THD must meet IEEE 519, the standard many utilities and specifications reference.

If a drive sits on a generator or a weak service, then added filtering keeps voltage distortion from tripping sensitive PLC and instrumentation circuits. Right-sizing mitigation early avoids unplanned retrofits after a panel is already in the field. Harmonic planning is built into every drive-based system we fabricate, including our Motor Control Panels.

Yes, because Adgo Controls specifies, configures, programs and commissions the VFD panel in-house, not just the enclosure. Engineers tune drive parameters to your motor and load, run acceptance testing before shipment then commission the panel on-site.

The steps to VFD configuration and commissioning include design, testing and install:

• Drive programming sets acceleration ramps, current limits and protection thresholds matched to your motor’s nameplate data.
• Factory acceptance testing (FAT) powers and exercises the panel at our Cincinnati facility before shipment, catching issues in the shop instead of in the field.
• On-site commissioning verifies the drive under real load, confirming speed control and fault response on your equipment.

Drives from leading manufacturers, including Rockwell Automation and Schneider, are configured to a consistent standard, so your team programs against one setup. Tuning and testing the drive before startup is what turns a parts assembly into a working system. That same in-house programming extends to PLC, HMI and SCADA work under our Full Systems Integration services.

A variable frequency drive panel is custom-engineered for a specific process and built around drive-based speed control. A motor control center (MCC) is a standardized lineup of multiple motor starters in one enclosure, common in large facilities. Adgo builds both, sized to your system.

These are the most common differences and similarities between a VFD panel versus a motor control center (MCC):

1. VFD panels control motor speed continuously, ideal when a pump or fan must ramp to match demand rather than run full-on.
2. MCCs standardize across-the-line and reduced-voltage starters in bucket sections, favored where many motors start and stop at fixed speed.
3. Each of their footprints differs: A VFD panel is sized to its drives and cooling, while an MCC follows a fixed vertical-section format.

If your process needs variable flow and energy savings, then a VFD panel fits; if you manage dozens of fixed-speed motors, then an MCC often wins.

Choosing between the two starts with how your motors actually run over time and the functions for which they operate. Our engineers weigh both VFDs and MCCs during the early design period, the same way we scope builds for  Industrial Controls. We advise you on your project based on your overall needs and the goals you have for success.

A VFD panel saves energy by slowing a motor to match real demand instead of running full speed and throttling the output. On centrifugal pumps and fans, modest speed reductions can cut energy use sharply because the power required follows roughly the cube of speed.

Major energy savings on variable-torque loads can be realized:

• Affinity laws govern centrifugal loads: required power drops with roughly the cube of speed, so trimming speed meaningfully lowers draw.
• Soft starting removes the inrush current of across-the-line starts, reducing demand charges and mechanical shock.
• Closed-loop control holds setpoint with a PID loop, so the drive delivers only the speed the process needs.

Did you know that if a pump runs throttled against a valve, then replacing that restriction with VFD speed control removes the wasted energy? The biggest savings show up on pumps and fans that rarely need full output. We engineer that efficiency into fluid systems through our Pump Control Panels.

This type of panel controls motor speed continuously, while a soft starter only ramps a motor up to full speed and then steps aside in the programming. Choose a VFD when the process needs ongoing speed or torque control, and choose a soft starter when you only need a gentle start.

Here are definitions based on the operative advantages of a VFD versus a soft starter:

• VFDs vary frequency and voltage throughout operation, giving full-range speed and torque control plus energy savings. Soft starters limit inrush current at startup only, then run the motor across the line at fixed speed.
• Cost and footprint favor soft starters for simple starting duty, while VFDs earn their cost where speed control adds process value.

Based on these parameters, you can decide which choice is right for your application. If a conveyor or pump needs adjustable speed, then a VFD fits; if a fixed-speed motor just needs a gentle start, then a soft starter is enough.

Matching the starting method to the duty cycle protects both the motor and your budget. We specify the right approach during design, alongside the power and relay work in our Electrical Control Panels.

A VFD panel from Adgo Controls can be built around drives from leading manufacturers, including Rockwell Automation and Schneider, as well as others. Engineers select the drive that fits your application, specification and existing plant standard best. Some shops try forcing a single brand; however, we offer several OEMs for standardized installation.

The drive brand selection and standardization process shows the struggle between customization and standardization when it comes to servicing versus personalizing equipment:

• Plant standardization matters because matching the new drive to brands already on your floor simplifies spare parts and technician training.
• Application fit drives the choice, from low-horsepower pump duty to high-horsepower process loads.
• Communication compatibility (EtherNet/IP, Modbus) keeps the drive talking to your existing PLC and SCADA.
• If your specification names an approved manufacturer list, then Adgo Controls builds to that list and documents the selection.

Drive selection works best when it is planned with the controls that command it. We coordinate drive and processor choices together, the same way we build our PLC Panels. We can also retrofit legacy drives for equipment that cannot be upgraded, with documentation and support long after the install.

We retrofit and replace drives within existing VFD panels for many customers, updating programming and protection to match. Retrofitting lets you modernize aging or obsolete drives without rebuilding the entire enclosure or interrupting the rest of the system.

Adgo specializes in drive retrofit and replacement through a guaranteed process:

• Obsolescence assessment confirms whether a discontinued drive still has support or spare parts before you commit to a swap.
• Drop-in sizing matches the replacement drive’s footprint, mounting and ratings to the existing enclosure where possible.
• Reprogramming carries your parameters forward, so the new drive behaves like the unit it replaced.
• Planned retrofit restores a failed drive with current-generation hardware and a fresh warranty, saving a stranded critical line.

A retrofit done right extends the life of equipment you have already paid for. We stage and test those upgrades before they ship in the 30,000-square-foot shop shown on Our Facility page.

Adgo Controls builds variable frequency drive panels for water and wastewater, industrial manufacturing, food and beverage, agriculture, energy, refractory, steel, and transportation. Any operation that runs pumps, fans, conveyors or compressors can use a drive panel to precisely control those motors.

Some of the VFD panel applications by industry include:

• Water and wastewater uses VFD panels on lift-station and treatment pumps to match flow and cut energy.
• Industrial manufacturing applies drives to conveyors, mixers and process lines that need adjustable speed.
• Energy and lock-and-dam sites rely on drive panels for redundant, controlled operation of critical equipment.

If your application runs a variable-torque load like a pump or fan, then a VFD panel usually pays back through energy and wear savings. The bottom line is that motors should not run at full power all day. We map drive controls to each sector’s specifications across the markets on our Industries page, where you can find more information.
