Industrial Network Panels

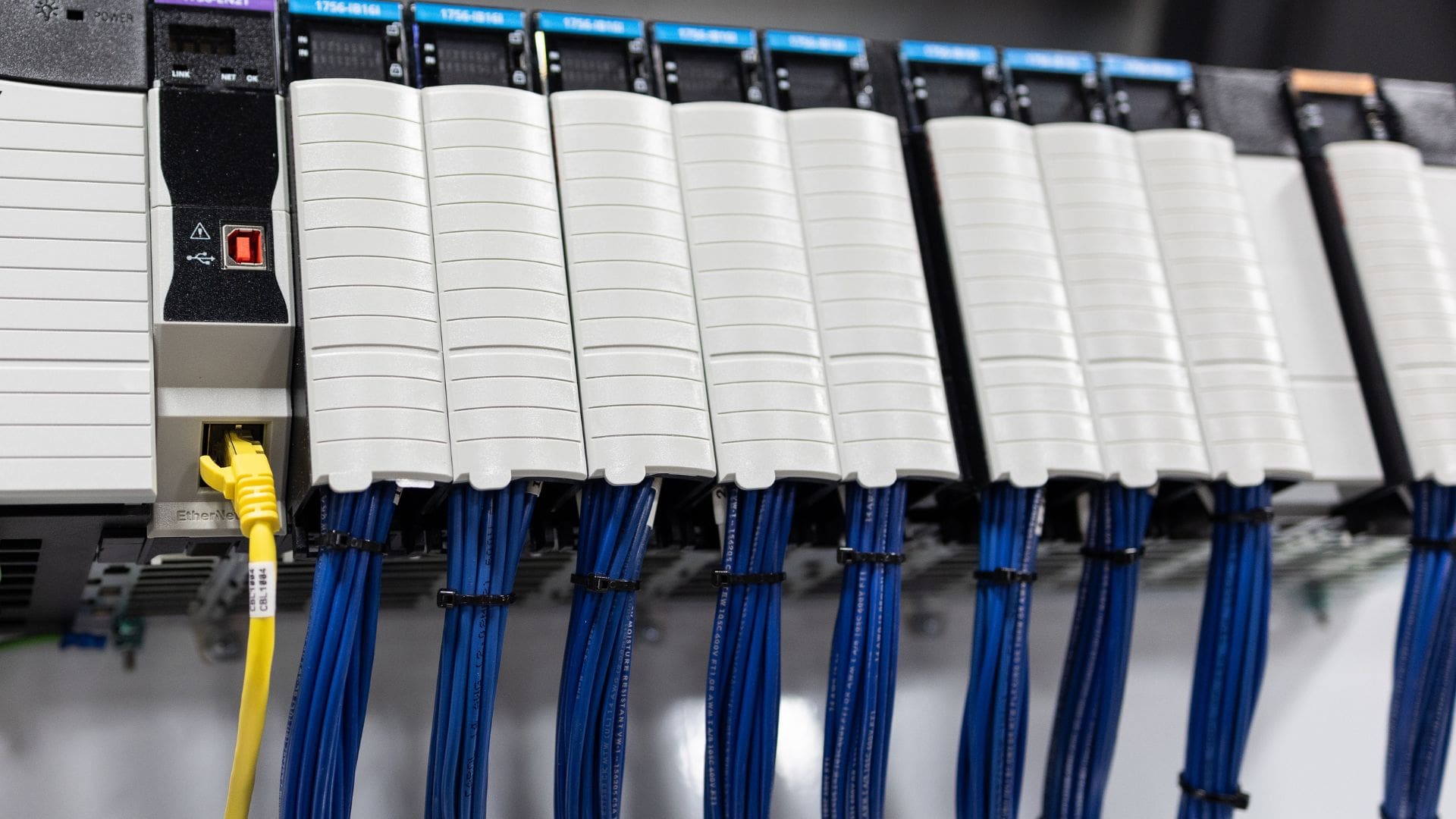

A network panel is an enclosed assembly that organizes, terminates and protects the active and passive hardware connecting devices on an industrial network. The network panel houses switches, routers, patch panels, fiber distribution units and cable management as a single, factory-tested unit that keeps control system, SCADA and OT data moving reliably.

Industrial network architecture dictates how a network panel is built and what the panel must contain. A plant network panel is engineered for the protocols, port counts and environmental loads of an operating production floor, not a server room.

• Active hardware: Managed or unmanaged Ethernet switches handle VLAN segmentation, port-level diagnostics and industrial protocol traffic such as EtherNet/IP, PROFINET or Modbus TCP.
• Passive hardware: Patch panels terminate Cat6, Cat6A or fiber cabling, and provide a structured cross-connect point between field devices and active equipment.
• Power and protection: 24 VDC power supplies, surge suppression and UPS modules keep switches online during transient events.
• If/then: If a single uplink between the network panel and a remote enclosure fails, then a redundant ring topology (RSTP or DLR) reroutes traffic within milliseconds to prevent SCADA polling errors.
• Documentation: Mechanical drawings, port assignment maps and IP addressing schedules ship with the assembly.

For full panel-build capability across the plant floor, visit our Control Panels page.

A network patch panel is one passive component inside a larger network panel. The network patch panel terminates incoming Cat6, Cat6A or fiber cabling and provides a labeled cross-connect to active equipment. A complete network panel houses the patch panel, managed switches, power supplies and cable management as one tested assembly.

Patch panel architecture is a subset of network panel architecture. The patch panel handles termination and cross-connection; the network panel handles the full electrical, mechanical and networking environment around it.

• Termination: A patch panel terminates field-side Cat6, Cat6A or fiber media into RJ45 or LC connectors. No active electronics live on a patch panel.
• Cross-connect: Short jumpers between the patch panel and a switch route traffic without disturbing the permanent field cabling.
• Active equipment: Managed switches, routers, firewalls and fiber media converters sit inside the network panel but not on the patch panel itself.
• Enclosure and power: NEMA-rated cabinets, 24 VDC supplies and surge protection are part of the network panel build.
• If/then: If a field cable is damaged at the head end, then technicians reterminate at the patch panel only, with no need to repull cable or touch the switch port.

For the full enclosure, switching, and documentation package, visit our Network Panels page.

Yes. Adgo’s network panels are built in a UL 508 and UL 698 certified panel shop, and every Adgo network panel SKU carries a UL listing label when the application calls for one. UL 508A governs industrial control panels; UL 698A governs panels for use in hazardous locations.

UL certification scope for Adgo network panel builds covers both standard industrial environments and hazardous-location applications.

• UL 508A (industrial control panels): Governs construction, wiring, component selection and short-circuit current rating (SCCR) of industrial control and network panels for ordinary locations.
• UL 698A (industrial control panels for hazardous locations): Governs panels installed in Class I, II or III hazardous areas, with specific requirements for intrinsic safety barriers and enclosure ratings.
• Listed components: Every switch, terminal block, power supply and breaker inside a UL-listed network panel must itself be UL recognized or listed.
• Field labeling: Adgo applies the UL listing label inside the panel after factory testing, before shipment.
• Hard fact: An installed network panel without a valid UL label can trigger a failed AHJ (authority having jurisdiction) inspection and delay plant startup.

For the full UL-certified panel program across motor, PLC and network builds, visit our Control Panels page.

Adgo network panels support NEMA 1, 12, 4 and 4X enclosures, sized to the installation environment. NEMA 12 is the most common rating for indoor industrial network panels. NEMA 4X is specified for washdown or corrosive environments such as food, beverage and chemical plants where stainless construction is required.

NEMA Enclosure Ratings

NEMA enclosure ratings define how a network panel resists dust, water and corrosion. The rating drives gasket selection, cable entry sealing and enclosure material (painted steel vs. 304/316 stainless).

• NEMA 1: General-purpose indoor enclosure. Protects against incidental contact, not dust or moisture.
• NEMA 12: Indoor enclosure that excludes circulating dust and non-corrosive drip. Standard for most plant-floor network panels.
• NEMA 4: Indoor or outdoor, rated for hose-directed water and windblown dust.
• NEMA 4X: NEMA 4 protection plus corrosion resistance. Specified for food, beverage, chemical and marine applications.
• If/then: If a network panel sits within sanitary spray range on a food line, then the build must be NEMA 4X stainless with sealed cable glands to prevent ingress at conduit penetrations.

For UL-certified builds across every plant environment, visit our Control Panels page.

Yes. Adgo network panels are designed in-house alongside the PLC and motor control panels in the same shop, so the network architecture matches the protocols, addressing scheme and reporting requirements your existing PLC and SCADA system already uses, including EtherNet/IP, PROFINET, Modbus TCP and OPC UA.

Industrial protocol compatibility is the first design constraint on a plant network panel. The panel must move packets in the exact dialect your controllers and historian expect.

• EtherNet/IP and PROFINET: Adgo configures managed switches for the QoS, multicast filtering and VLAN tagging these deterministic protocols require.
• Modbus TCP and OPC UA: Gateway devices bridge legacy serial Modbus or proprietary PLC traffic to a modern SCADA layer.
• Addressing alignment: Switch port assignments, static IPs and DHCP scopes are documented to match the existing PLC and SCADA tag database before factory test.
• Cybersecurity posture: Managed switches enforce port security, MAC filtering and OT/IT segmentation per IEC 62443 guidance.
• If/then: If SCADA polls at sub-100 ms intervals, then the network panel is specified with industrial-grade managed switches rated for non-blocking line-rate forwarding to prevent dropped reads.

For end-to-end PLC, motor, and network panel design from one engineering team, visit our Control Panels page.

Yes. Adgo network panels can be configured for copper (Cat6 or Cat6A), fiber (multimode or single-mode), or a hybrid build, with media selected based on cable run distance, required bandwidth and electromagnetic interference exposure on the plant floor. Hybrid panels combine RJ45 patch fields with LC fiber distribution units in one enclosure.

Copper vs. fiber selection depends on distance, EMI and bandwidth. A network panel build accounts for both media within a single enclosure when needed.

• Cat6/Cat6A copper: Supports 1 Gbps up to 100 m and 10 Gbps over Cat6A up to 100 m. Standard for short-run device drops.
• Multimode fiber (OM3/OM4): Supports 10 Gbps up to roughly 300–400 m. Used for cross-building runs that exceed copper’s reach.
• Single-mode fiber (OS2): Supports long-haul links between buildings or remote stations, typically up to several kilometers.
• EMI immunity: Fiber is dielectric and immune to interference, which matters next to variable frequency drives and large motor loads.
• If/then: If a run exceeds 100 m or crosses a high-EMI environment, then the network panel specification calls for fiber distribution units (FDUs) and media converters in place of copper.

Visit our Network Panels page for a custom-engineered network panel built around your media and distance requirements.

Lead time on a custom network panel typically ranges from four to eight weeks. Final schedule depends on project scope, port count and component availability at order time. Long-lead components, such as specific managed switch SKUs or specialty enclosures, can extend the schedule. Design kickoff begins the day specifications are confirmed.

Network panel lead-time drivers break into engineering hours, procurement, fabrication and factory test. Each phase has predictable durations once specifications are locked.

• Engineering and design: Schematic capture, bill of materials, panel layout and customer drawing approval typically run one to two weeks.
• Procurement: Managed switches, fiber distribution units and specialty enclosures drive the procurement window; commodity items ship from stock.
• Fabrication and wiring: Mechanical fitting, wire pulling and labeling typically run one to two weeks for a standard network panel.
• Factory acceptance test (FAT): Every panel is power-cycled, point-checked and protocol-tested before shipment, adding two to five days, depending on the test plan.
• If/then: If a specified managed switch model has a vendor lead time beyond six weeks, then Adgo engineers propose an equivalent UL-listed substitute to hold the build schedule.

To start a custom network panel quote with engineering, procurement and factory test in one shop, visit our Control Panels page.

Yes. A network panel retrofit is possible when the existing control cabinet has enough internal space, available 24 VDC power and thermal headroom to support the new hardware. Adgo’s engineers evaluate panel volume, free DIN-rail length, power budget and heat rise before recommending a retrofit, sidecar expansion or new dedicated network panel.

Retrofit feasibility covers four constraints. Skipping any one of them creates a panel that runs hot, trips on inrush or fails AHJ inspection.

• Volumetric space: Switches, patch panels and cable management need clear DIN-rail and back-panel real estate plus 2 inches of service clearance.
• Power budget: A new managed switch draws 30 to 60 W; the existing 24 VDC supply must have headroom or be uprated.
• Thermal load: Added heat raises internal cabinet temperature and shortens switch and PLC lifespan. Adgo calculates heat rise against the enclosure’s NEMA rating.
• UL listing impact: A field modification to a previously UL-listed panel may void the original label unless re-evaluated under UL 508A.
• If/then: If any one constraint fails, then Adgo recommends a sidecar enclosure or a new dedicated network panel instead of forcing the retrofit.

For new-build and retrofit panel work under one UL-certified shop, contact us today.

Every Adgo network panel ships with a complete documentation package, including a UL listing label. The package contains mechanical drawings, electrical schematics, a bill of materials and factory acceptance test (FAT) records. The network panel documentation also includes port assignment maps and IP addressing schedules specific to that build.

Documentation standards at Adgo follow UL 508A and ANSI/IEEE drawing conventions, so the package is interpretable by any panel shop, integrator or AHJ inspector.

• Mechanical drawings: Front view, back-panel layout, sub-panel detail and door-mount component layout with dimensioning.
• Electrical schematics: Power distribution, control wiring, communications wiring and grounding diagrams.
• Bill of materials (BOM): Manufacturer part numbers, UL component recognition status and quantities for every device.
• FAT records: Point-by-point continuity, hi-pot and protocol tests are documented and signed before shipment.
• Network-specific items: Port assignment maps, IP addressing schedules and managed-switch configuration backups.
• If/then: If an AHJ inspection requests verification of the panel’s UL listing, then the documentation package contains the SCCR rating, listing label photo and component traceability.

For the full UL-certified panel program with documentation across motor, PLC and network builds, contact us today.

Yes. Adgo network panels can be built with managed or unmanaged Ethernet switches, depending on the application. Managed switches are specified when the system requires VLAN segmentation, port-level diagnostics, redundant ring topology (RSTP, MRP or DLR), or remote monitoring via SNMP. Unmanaged switches suit simple, flat networks with no segmentation needs.

Managed switch selection for a network panel is driven by network architecture, not budget. The wrong switch class creates either a maintenance burden or a future migration cost.

• VLAN segmentation: Managed switches isolate OT, IT and guest traffic on the same physical infrastructure, a baseline requirement under IEC 62443.
• Diagnostic visibility: Port mirroring, SNMP traps and syslog forwarding flag a failing port before it disrupts production.
• Redundancy protocols: RSTP, MRP and DLR ring topologies recover from a single link failure in under 50 ms, faster than most PLC scan cycles.
• Industrial hardening: Switches inside a network panel are typically rated for −40 °C to +75 °C operation, fanless cooling and DIN-rail mount.
• If/then: If the application requires sub-100 ms SCADA polling, then the network panel build specifies a managed industrial switch with hardware-based ring redundancy.

For a custom-engineered switch-and-patch field built into a single factory-tested assembly, contact us today.
